How does reality capture work with BIM in modern construction?

Reality capture software is a game-changer for the modern construction industry, improving how professionals visualize and manage projects. These solutions, which include tools like 360° cameras and advanced construction AI, replace scattered and time-consuming manual photo documentation by delivering automated and complete visual records of current jobsite conditions. Beyond documentation, reality capture that seamlessly integrates with Building Information Models (BIM) significantly improves office and field collaboration.

Reality capture starts with capturing existing conditions

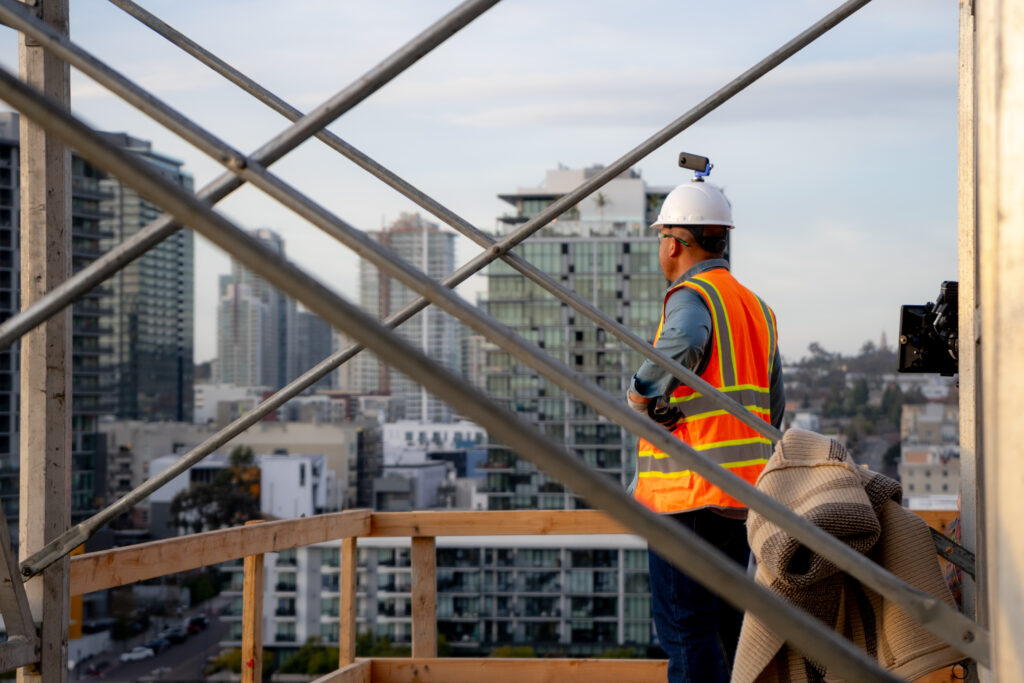

Reality capture changes how professionals visualize and manage projects. This technology uses advanced tools like 3D laser scanners, 360° cameras, and drones to create accurate digital representations of construction sites.

With precise as-built records of a project, construction professionals can:

• Obtain accurate measurements and spatial relationships.
• Identify potential issues early in the design phase.
• Make well-informed decisions during planning.



Monitoring construction progress

Reality capture technology enables near real-time progress monitoring throughout a project’s lifecycle. The ability to virtually navigate a jobsite helps project managers:

• Track progress effectively.
• Identify deviations from the construction schedule early.
• Make prompt adjustments to minimize delays.

And with the ability to compare as-designed models with reality capture data, you have a leg up on quality control. You can quickly identify any deviations from design specifications, leading to timely corrections and ensuring that construction meets standards.

BIM as a collaborative platform

Building Information Modeling (BIM) in the construction industry provides a powerful platform for collaboration among various stakeholders. A digital representation of a building’s physical and functional characteristics enables communication and data sharing throughout the project lifecycle.

Information management in BIM

BIM serves as a central hub for managing and organizing project data, enabling professionals to access and update information from any location, improving real-time collaboration. This centralized approach to information management helps reduce errors, minimize miscommunication, and improve overall project efficiency. For instance, one study found that poor data management and communication issues cost U.S. contractors and construction managers over $31 billion annually in rework expenses.

BIM for facility management

BIM’s value extends beyond the construction phase, offering significant benefits for facility management. By providing a digital twin of the building, BIM enables facility managers to:

• Optimize space management.
• Develop effective preventative maintenance programs.
• Improve energy efficiency and reduce operating costs.
• Facilitate system retrofits and facility improvements.

This comprehensive approach to facility management helps building owners and managers make informed decisions throughout the building’s life, ultimately leading to more efficient and cost-effective operations.

Workflow for integrating reality capture data into BIM

The integration of reality capture data into Building Information Modeling involves a workflow that enhances the accuracy and efficiency of construction projects. This process combines advanced construction AI technologies to create a comprehensive digital visual of the as-built environment.

Data capture and processing

The workflow begins with data capture, which forms the core of the scan-to-BIM process. 3D laser scanners and other advanced technologies collect precise measurements of the existing site conditions. These tools generate millions of data points, creating a detailed point cloud model that represents the scanned area in three dimensions. The accuracy of this initial data capture is crucial, as it directly impacts the quality of the final BIM model.

Once captured, the point cloud undergoes processing to remove noise and refine the data. This step ensures that the information is clean and ready for integration into the BIM environment.

Alignment and registration

After processing, the point cloud data is aligned and registered with the existing BIM model. This step involves superimposing the as-built point cloud onto the as-planned model. To facilitate this process, localization is performed to recognize the location of model components by estimating the relative position of the sensor in the virtual BIM coordinate system.

Model validation

Quality assurance and verification are crucial. The updated BIM model is compared against the original point cloud data and checked against actual site conditions. Any discrepancies are identified and resolved to ensure the model accurately reflects the current structure.

Overcoming challenges in reality capture and BIM integration

Technical hurdles and solutions

The integration of reality capture and BIM faces several technical challenges. One major hurdle is software interoperability issues, which can lead to inaccurate information exchanges. To address this, organizations need to focus on developing standardized data formats and protocols. Another challenge is the complexity of managing and processing large amounts of reality capture data. Implementing robust data management systems and utilizing cloud-based solutions can help overcome this obstacle.

Cost considerations

While reality capture and BIM integration offers numerous benefits, there are initial costs. Organizations must invest in specialized hardware, software licenses, and employee training. However, the long-term benefits often outweigh these upfront expenses. To manage costs effectively, companies can start with pilot projects to optimize workflows before full-scale implementation. This approach allows for gradual adoption and helps identify the most cost-effective solutions for their specific needs.

FAQs

What is reality capture and how does it function?

Reality capture involves the creation of a three-dimensional model of a physical space or object using various sensing technologies such as laser scanners, cameras, and drones.

What advantages does reality capture offer in the construction industry?

Reality capture delivers enhanced insight into projects, streamlined operations, and improved accuracy—all helping to reduce project timelines, cut costs, and elevate client satisfaction.

Can you explain what 3D reality capture entails?

3D reality capture is a technique used to digitally model a site, such as a building, plant, or crime scene, in three dimensions. This process combines both imagery and precise measurements.

What does the scan-to-BIM process involve?

The scan to BIM process involves converting digital models obtained from laser scans into a format usable within BIM systems. These systems help interpret the data and incorporate it into a 3D model for use by design, development, and construction teams.



If you’re interested in a live demo to see the many use cases for OpenSpace, schedule your OpenSpace demo here.
